CoilMate®/Dickerman®'s Model 6EFT Straightener

Our Economy Flip-Top (EFT) Model(s) Coil Straighteners feature: Flip-Top Design, Entry and Exit powered pinch rolls, individual roll adjustment, 75 FPM with loop arm control, remote jog pendant, 110V Single Phase.

Our Economy Flip-Top (EFT) Model(s) Coil Straighteners feature: Flip-Top Design, Entry and Exit powered pinch rolls, individual roll adjustment, 75 FPM with loop arm control, remote jog pendant, 110V Single Phase.

Click for larger image



Model 6EFT Straightener - Specifications

Max. Stock Width : 6" (152.400mm)
Capacity Mild Steel (min/max): .010/.078 (.254mm / 1.98mm)
Straightening Roll Dia.: 1.125" (28.600mm)
Center Distances : 1.75" (44.4mm)
Pinch Roll Dia.: 2" (50.800mm)
Number of Rolls: 7 straightener rolls, 4 pinch rolls

Available Options:

  • Dial Indicators
  • Chrome Rolls
  • Modulating Drive w/ ultrasonic loop control
  • N/C (non-contact) Control
  • High Speed Drives

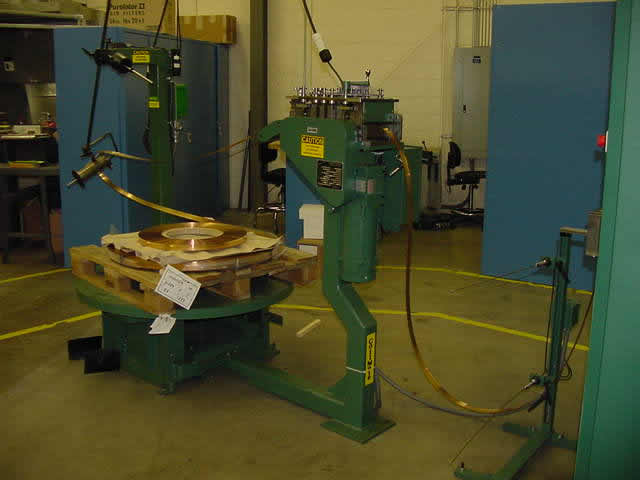

6EFT Coil Straightener with Non-Contact loop control; Please click for a larger version. Coil straightener with DualMate® Pallet Decoiler delivers material smoothly to a high speed stamping press utilizing a 2 probe non-contact loop control.
