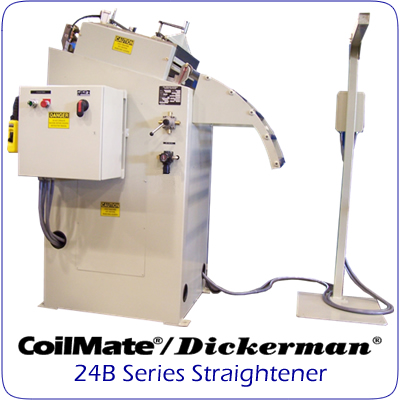

Model 24B Straightener from CoilMate®/Dickerman®

A series of catenary rolls is mounted at the exit end of the coil straightener to assist the material into the slack loop.

A series of catenary rolls is mounted at the exit end of the coil straightener to assist the material into the slack loop.

Click for larger image



Model 24B Straightener - Specifications

Max. Stock Width : 24" (609.600mm)
Capacity Mild Steel (min/max): .018/.078 (.457mm / 1.981mm)
Straightening Roll Dia.: 2" (50.800mm)
Center Distances : 2.5" (63.5mm)
Pinch Roll Dia.: 2" (50.800mm)
Number of Rolls: 7 straightener rolls, 4 pinch rolls
