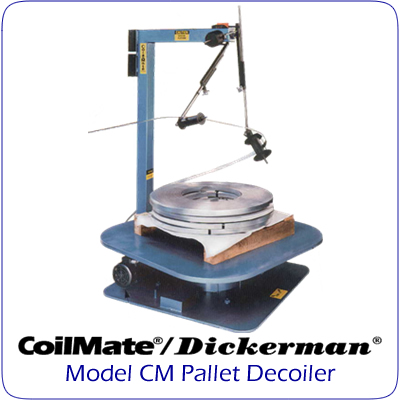

CoilMate®'s Model CM Pallet Decoiler

The Model CM pallet decoiler provides maximum versatility for job shops and other stampers that run a wide range of applications. The patented hold-up arm helps reduce the load on the press feed while reducing material "bounce" making the CM pallet decoiler the ideal choice for intricate high speed stamping.

The Model CM provides maximum versatility for job shops and other stampers that run a wide range of applications.

Click for larger image



Model CM - Specifications

Capacity: 4,000 — 20,000 lbs.
Platform Size: 42" Sq. or 48" Sq. and 60" or 72" Dia.
Platform Speed: 0 — 27 RPM
Control: Dancer Arm with Potentiometer
Material Gauge Range : Max. .065" @ 6" wide, CR Steel
Voltage: 110V or 220V, Single PH
Max. Coil O.D.: Up to 72 "
Coil Stack Height: Up to 37"
Drive System: Direct chain driven DC Regenerative
Optional Open Loop Vector

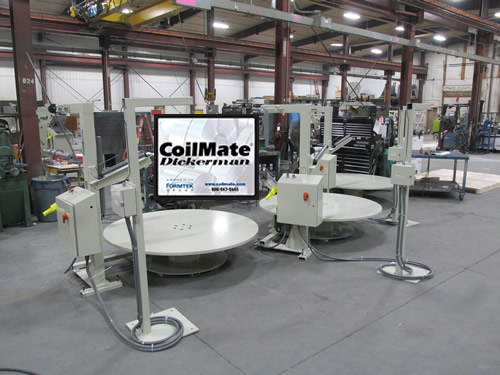

20,000 lb CoilMate CM Pallet Decoilers with AC vector drive and laser loop control
