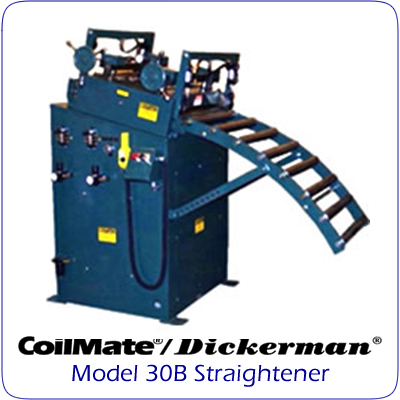

CoilMate®/Dickerman®'s Model 30B Coil Straightener
An entry stock roller support and an upper roller guide directs the flow of material from pull-off type stock reels. Large vertical rollers are hardened and adjustable for edge guidance of material.
Click for larger image
Model 30B Straightener - Specifications
| Max. Stock Width : | 30" (762.000mm) |
| Capacity Mild Steel (min/max): | .018/.048 (.457mm / 1.219mm) |
| Straightening Roll Dia.: | 2" (50.800mm) |
| Center Distances : | 2.5" (63.5mm) |
| Pinch Roll Dia.: | 2" (50.800mm) |
| Number of Rolls: | 7 straightener rolls, 4 pinch rolls |
