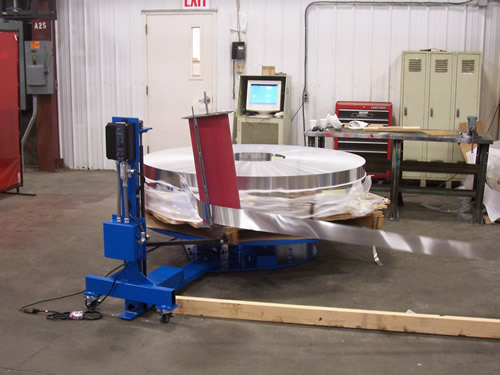

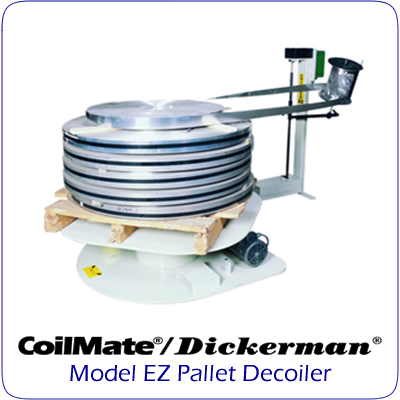

Model EZ Pallet Decoiler from CoilMate®
The Model EZ Pallet Decoiler is designed for fast and easy set-ups with no adjustments, weights, pulleys, cables or springs required to operate. Patented shock absorbing feature eliminates material bounce common with decoiling methods. Direct chain driven center spindle design virtually eliminates the problems associated with caster wheel rim driven units.
Model EZ - Specifications
| Capacity: | 4,000 — 20,000 lbs. |
| Platform Size: | 42" Sq. or 48" Sq. and 60" or 72" Dia. |
| Platform Speed: | 0 — 27 RPM |
| Control: | Control Arm with Analog Variable Speed |
| Material Gauge Range: | Max. .065" @ 6" wide, CR Steel CQ |
| Voltage: | 110V or 220V, Single PH |
| Max. Coil O.D.: | Up to 72 " |
| Coil Stack Height: | Up to 37" |
| Drive System: | Direct chain driven DC Regenerative Optional AC open Loop Vector |
